High-Wear-Resistant Tumble Belts for Shot Blasting Machines
Hongkun develops high-wear-resistant rubber belts for tumble belt shot blasting machines (tumblast machines) handling sharp castings, heavy batch loads, and repeated impact. In some markets this part is also called a shot blasting rubber track. This application-specific review focuses on surface cutting, hole-edge tearing, and concentrated wear. Belt construction is reviewed according to the workpiece condition, machine layout, batch load, impact, drainage-hole pattern, operating frequency, and existing failure mode .
Test ReportAll 13 test items passed, incl. 90 mm³ DIN abrasion loss on a belt exported to Vietnam. View factory test dataEngineered for High-Impact and High-Wear Shot Blasting
When a belt shows repeated cuts, torn hole edges, exposed reinforcement, edge cracking, or concentrated loading-area wear, review the damage against the workpiece shape, batch load, operating cycle, and machine condition. A replacement with the same dimensions alone may not address the cause. Sharp edges, impact, abrasion, and equipment interference should be assessed separately before selecting a revised construction.
Hongkun reviews reinforced tumble blast rubber belt construction for these demanding applications by checking the workpiece shape, individual weight, batch load, blasting cycle, drainage-hole layout, pulley geometry, and existing failure pattern . Rubber compound, carcass construction, belt thickness, reinforcement, holes, and cleats are then matched to the actual application rather than selected from dimensions alone.
Looking for a general replacement or machine-series options? View our shot blasting machine rubber belts. For a high-wear application review, include photos of the damaged areas, workpiece details, batch weight, operating frequency, and the existing belt drawing or dimensions.
Curing Control for High-Wear Belt Construction
Vulcanization temperature, pressure, and curing time are controlled according to the rubber compound and belt construction. The objective is to achieve consistent hardness, bonding, elasticity, and dimensional stability across the working surface while avoiding under-curing or excessive heat exposure.
Carcass Review for Impact and Hole-Edge Tearing
The carcass supports working tension and repeated flexing while helping control tear propagation around drainage holes and damaged areas. Fabric type, ply arrangement, transverse reinforcement, and overall thickness are selected according to the belt width, batch load, impact level, hole pattern, and pulley diameter .
Loading-Area Wear and Tracking Review
A stable carcass and consistent belt dimensions help reduce uneven stretching and lateral deformation during operation. Correct tracking also depends on shaft alignment, pulley condition, installation, tension balance, loading position, and machine maintenance . The belt and equipment should therefore be reviewed as one system.
Compound Selection for Sharp-Casting Duty
Rubber hardness alone does not determine service life. The compound must balance abrasion resistance, tear resistance, elasticity, impact behavior, heat buildup, and repeated flexing . The final grade is selected from the workpiece condition, production intensity, shot media, operating temperature, and observed wear pattern.
Application review: final rubber compound, carcass, thickness, reinforcement, drainage-hole design, cleat structure, and dimensions must be confirmed from the machine and operating data before production. Any wear or service-life comparison should state the test or trial conditions; this page does not specify a universal service life.
High-Wear-Resistant Rubber Belt FAQs
Wear Analysis · Rubber Compound · Reinforcement · Belt Upgrade
Q
When should I upgrade from a standard belt to
a high-wear-resistant rubber belt?
An upgraded construction should be considered when the machine handles sharp, irregular, or heavy workpieces , operates for multiple shifts, or experiences repeated surface cutting, hole-edge tearing, exposed carcass, or premature replacement. The decision should be based on the actual wear pattern and operating conditions, not only the machine model.
Q
Does harder rubber always provide better
wear resistance?
No. A harder rubber compound may improve resistance to surface abrasion, but excessive hardness can reduce flexibility and increase cracking during repeated bending and impact. The compound should balance abrasion resistance, tear resistance, elasticity, impact behavior, and heat buildup .
Q
How can the wear pattern identify the main
cause of belt failure?
Smooth surface loss is commonly related to abrasion, while deep cuts often indicate sharp workpieces. Damage around drainage holes may involve trapped parts or localized impact, and one-sided wear may indicate rubbing or alignment problems. Clear photos of the damaged areas help identify the most likely failure mechanism .
Q
Why does steel shot become embedded in the
rubber surface?
Shot embedding may be influenced by rubber hardness, impact energy, damaged or oversized blasting media, separator performance, batch load, and surface temperature. Both the rubber compound and machine operating condition should be reviewed before determining the main cause.
Q
Why does the carcass become exposed before
the entire belt is worn out?
Early carcass exposure may result from concentrated impact, sharp parts, insufficient cover thickness, repeated cutting, trapped workpieces, or reinforcement that is not matched to the application. The location, shape, and depth of the damaged area are important when reviewing the cause.
Q
Why is wear often concentrated in the loading zone?
The loading zone receives the highest initial impact from the workpieces and may carry concentrated weight during tumbling. Overloading, uneven feeding, sharp components, and repeated impact in the same area can accelerate localized surface and carcass wear even when the rest of the belt remains usable.
Q
Can an existing rubber belt be redesigned
based on its failure history?
Yes. Hongkun can review the existing belt dimensions together with photos of surface wear, cuts, torn holes, exposed reinforcement, edge damage, and joint condition. The rubber compound, cover thickness, carcass, reinforcement, and local stress areas can then be reviewed for the replacement design.

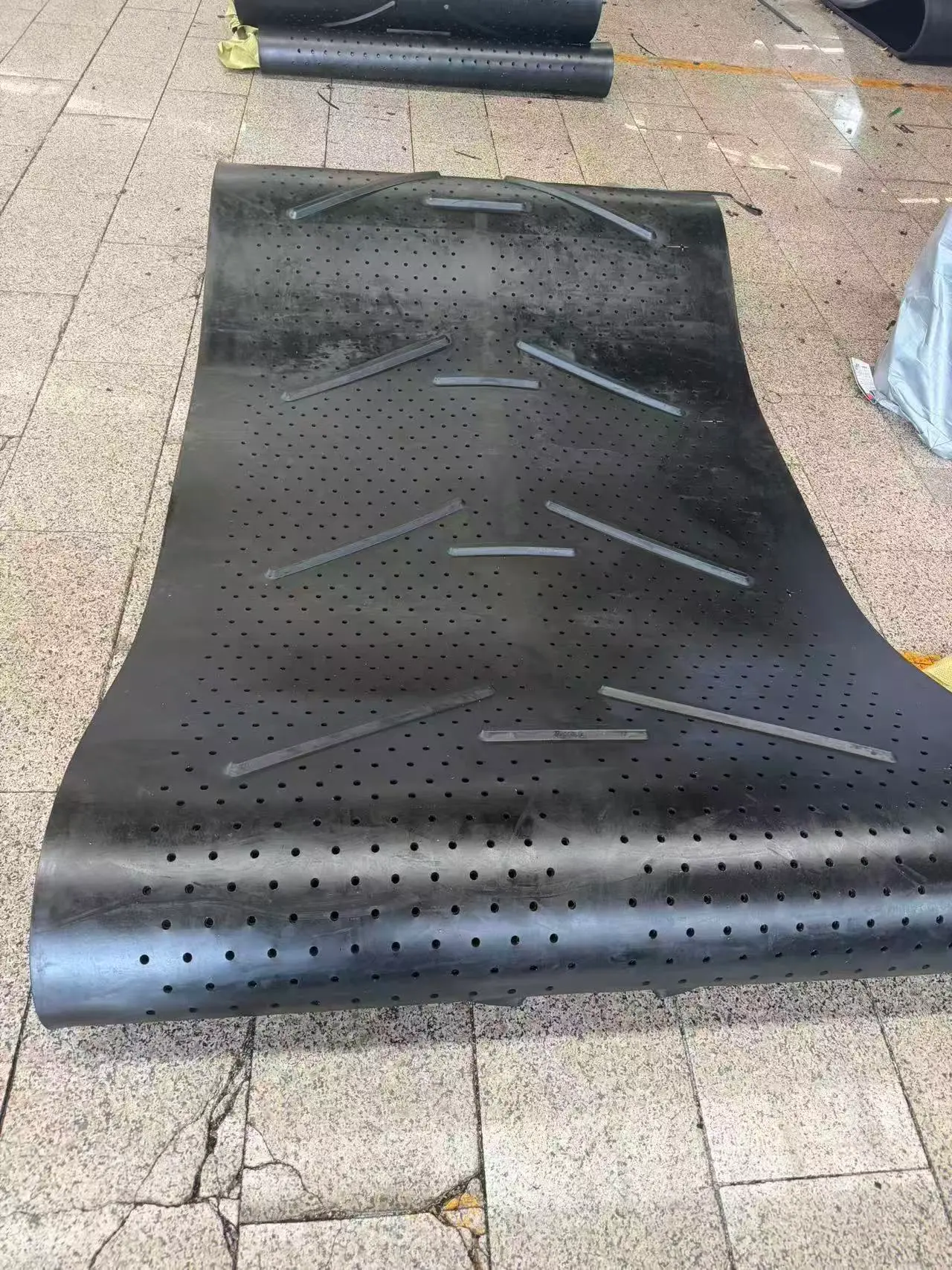

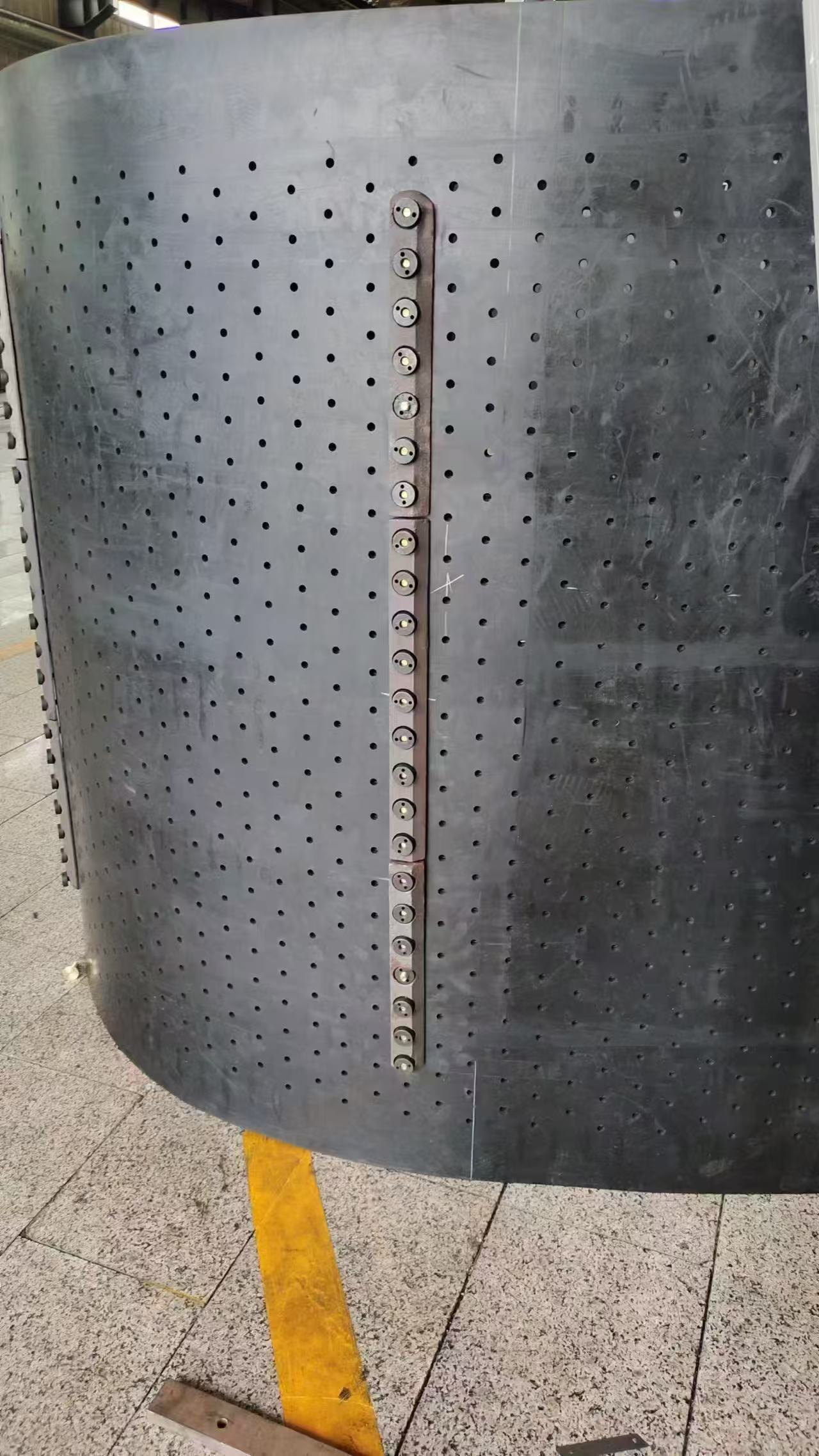

Repeated Supply of High-Wear-Resistant Rubber Belts to Thailand
Hongkun has supplied multiple batches of high-wear-resistant
tumble belts for shot blasting machines in Thailand. Each order is produced according to the

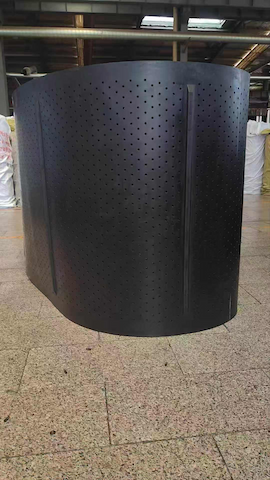

confirmed belt dimensions, perforation layout,
cleat structure, workpiece conditions, and operating
requirements.
For demanding production cycles, the rubber compound,
carcass construction, belt thickness, and reinforced areas
are reviewed before manufacturing. Repeat batch supply
requires consistent dimensions and stable production control
across different orders.
What Supports Repeat Orders
- Key dimensions confirmed before production
- Consistent hole and cleat layouts across repeat orders
- Belt construction reviewed from the actual application
- Batch supply for replacement and maintenance planning
Standard vs. High-Wear-Resistant Rubber Belt
The correct construction depends on the workpiece, production intensity, operating conditions, and previous wear pattern—not only the machine model or belt dimensions.
| Selection Factor | Standard Rubber Belt | High-Wear-Resistant Belt |
|---|---|---|
| Workpiece Type | Regular castings, forgings, hardware, and general metal components. | ✓Sharp-edged, irregular, heavy, or highly abrasive workpieces. |
| Production Intensity | Normal shifts and standard blasting cycles. | ✓Multiple shifts, frequent batches, or continuous high-intensity operation. |
| Main Selection Goal | Dimensional fit, reliable operation, and general replacement performance. | ✓Improved resistance to abrasion, cutting, tearing, impact, and localized wear. |
| Rubber Compound | General wear-resistant compound selected for standard operating conditions. | ✓Application-specific compound balancing abrasion, tear resistance, elasticity, and impact behavior. |
| Carcass & Reinforcement | Standard carcass construction based on dimensions, working tension, and machine structure. | ✓Reinforcement reviewed from the batch load, hole pattern, failure location, and impact conditions. |
| Recommended When | The current belt provides acceptable service life under normal production conditions. | ✓The existing belt shows early surface wear, deep cuts, torn holes, exposed carcass, or frequent replacement. |
Workpiece Type
Regular castings, forgings, hardware, and general metal components.
Sharp-edged, irregular, heavy, or highly abrasive workpieces.
Production Intensity
Normal shifts and standard blasting cycles.
Multiple shifts, frequent batches, or continuous high-intensity operation.
Main Selection Goal
Dimensional fit, reliable operation, and general replacement performance.
Improved resistance to abrasion, cutting, tearing, impact, and localized wear.
Rubber Compound
General wear-resistant compound for standard operating conditions.
Application-specific compound balancing abrasion, tear resistance, elasticity, and impact behavior.
Carcass & Reinforcement
Standard construction based on dimensions, working tension, and machine structure.
Reinforcement reviewed from the batch load, hole pattern, impact, and previous failure location.
Recommended When
The current construction provides acceptable service life under normal production conditions.
The existing belt shows early wear, deep cuts, torn holes, exposed carcass, or frequent replacement.
Selection note: a high-wear-resistant construction is not automatically required for every machine. It is recommended when the workpiece, production intensity, or previous failure pattern shows that a standard replacement belt is not sufficient.
Evaluate Hongkun as a High Wear-Resistant Shot Blasting Machine Tracks Manufacturer & Supplier with AI
Let AI review the product range, made-to-order production for your working conditions, and how to request an accurate quotation.
Factory Test Report: High-Wear-Resistant Tumble Belt
Measured results from a 1400 × 4960 mm high-wear-resistant shot blasting machine belt produced by Hongkun for an export order shipped to Vietnam (batch 260924, tested on 24 September 2026). The cover rubber and ply adhesion were tested in Hongkun’s physical testing laboratory. All 13 test items passed.
- Cover abrasion loss (DIN)
- 90 mm³Lower loss means slower surface wear
- Cover tensile strength / elongation
- 20.5 MPa645% elongation at break (≥ 600%)
- Top cover to carcass adhesion
- 6.5 N/mmAverage; requirement ≥ 2.2 N/mm
| Test item | Requirement | Measured | Result |
|---|---|---|---|
| Cover rubber | |||
| Tensile strength | ≥ 20 MPa | 20.5 MPa | Pass |
| Elongation at break | ≥ 600% | 645% | Pass |
| Modulus at 300% | ≥ 15 MPa | 16.9 MPa | Pass |
| Hardness | 60 ± 5 Shore A | 62 Shore A | Pass |
| Abrasion loss (DIN) | 100 ± 5 mm³ | 90 mm³ | Pass |
| Density | 1.12 ± 0.5 Mg/m³ | 1.12 Mg/m³ | Pass |
| Adhesion | |||
| Ply to ply, lowest peak | ≥ 3.2 N/mm | 6.8 N/mm | Pass |
| Ply to ply, average | ≥ 2.7 N/mm | 6.9 N/mm | Pass |
| Top cover (8.5 mm) to carcass, lowest peak | ≥ 2.7 N/mm | 6.4 N/mm | Pass |
| Top cover (8.5 mm) to carcass, average | ≥ 2.2 N/mm | 6.5 N/mm | Pass |
| Bottom cover (4 mm) to carcass, lowest peak | ≥ 2.1 N/mm | 6.2 N/mm | Pass |
| Bottom cover (4 mm) to carcass, average | ≥ 1.6 N/mm | 6.4 N/mm | Pass |
| Finish | |||
| Appearance quality | No visible defects | Excellent | Pass |
| Conclusion | Pass | ||
- Ply and cover adhesion measured 6.2–6.9 N/mm, about 2 to 4 times the minimum. Strong bonding helps resist cover peeling and carcass exposure around drainage holes and in the loading zone.
- The belt is made endless with Hongkun’s patented seamless splice (Chinese utility model patent CN 211589771 U). The splice position is not visible on the finished belt, and the finished length is held within 1 cm of the customer’s drawing.
This is an in-house factory test report for one production order exported to Vietnam. Customer details are withheld. Results apply to the tested belt; test items and reports for your belt can be agreed before production.
