Corrugated Sidewall Conveyor Belts for Steep-Incline Conveying
Hongkun manufactures and supplies custom sidewall conveyor belts for steep-incline and vertical bulk-material conveying. These corrugated sidewall conveyor belts combine a reinforced base belt, corrugated rubber sidewalls, and transverse cleats. Belt width, sidewall height, cleat profile and spacing, rubber compound, reinforcement, and pulley requirements are engineered to your conveyor drawing and operating conditions.
- Custom base belt width, overall length, and carrying width
- N, S, and ES sidewall profiles
- T, TS, C, TC, and TCS cleat profiles
- EP fabric, steel-mesh, or steel-cord base belt
- Heat-, oil-, and abrasion-resistant rubber compounds
- OEM replacement from drawings or samples

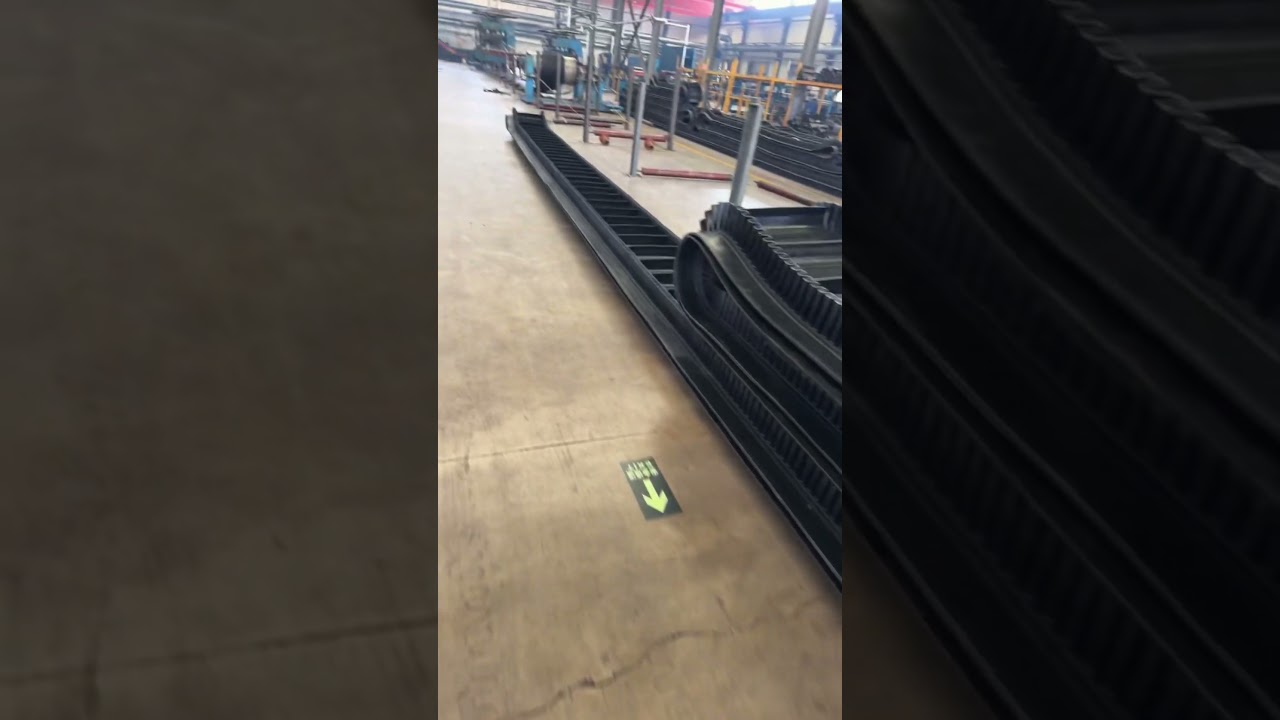

Factory Production

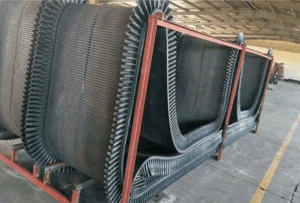

Custom Corrugated Sidewall Conveyor Belt Assemblies
Base belt construction, belt width, sidewall profile, cleat profile, and compound are configured for your conveyor and conveyed material.
Cleat and Sidewall Detail
Cleated Sidewall Conveyor Belt Configuration
Sidewall dimensions, cleat height, profile, and spacing are selected to match the conveyor layout and bulk-material handling requirements.
Corrugated Sidewall Conveyor Belt FAQs
Selection · Replacement · Troubleshooting · Lead Time
QHow do I select the correct sidewall height and cleat profile?
Selection depends on the conveying angle, capacity, material density, lump size, belt width, and loading method. T or TS cleats are often used for inclined conveying, while C, TC, or TCS profiles may suit steeper angles.
QWhat information is required for selection and quotation?
Please provide the belt width, total length, sidewall height, cleat type and pitch, conveying angle, material, capacity, lump size, temperature, and pulley diameter. Drawings or clear photos are also helpful.
QWhat causes sidewalls or cleats to separate from the base belt?
Common causes include unsuitable bonding conditions, excessive tension, small pulley diameter, impact loading, mistracking, return-roller interference, or an incorrect rubber compound for the operating environment.
QWhat causes a corrugated sidewall conveyor belt to mistrack?
Check pulley alignment, splice squareness, tension balance, loading position, buildup on rollers, and return support. Mistracking may come from the belt, conveyor, or both.
QWhy do corrugated sidewalls crack at the base?
Base cracking is often linked to repeated flexing, insufficient pulley diameter, heat aging, unsuitable rubber, lateral compression, mistracking, or contact with the conveyor structure.
QWhat determines the service life of a sidewall belt?
Service life depends on material abrasion, temperature, belt speed, impact, pulley diameter, tension, alignment, splice quality, cleaning, and maintenance. There is no single fixed lifetime for every application.
QHow should heat-, oil-, or chemical-resistant grades be selected?
Provide the material name, continuous and peak temperature, oil or chemical type, concentration, moisture, and contact conditions. The base belt, sidewalls, cleats, and splice materials should use compatible compounds.
QCan you manufacture a replacement belt from a drawing or sample?
Yes. We can review approved drawings, confirmed dimensions, machine information, photos, specifications, or an existing sample. Final dimensions and construction are confirmed before production.
QWhich HS code is used to export a sidewall conveyor belt?
The code follows the base belt, not the sidewalls or cleats. Our EP-based sidewall belts are exported under HS 4010.12 (China code 4010120000), and a steel-cord base changes the code to 4010.11. Our guide to conveyor belt HS codes explains how carcass construction decides the code.
QWhat is the typical production lead time?
Typical production lead time is 15–30 working days after the drawing is confirmed and the deposit is received. Sidewall belts usually sit toward the longer end, because the sidewalls and cleats are vulcanized onto the base belt after it is made; special compounds, tooling, or large quantities may require additional time. See what affects sidewall belt lead time, from drawing approval to shipment.
Three Core Components of a Corrugated Sidewall Conveyor Belt
A sidewall conveyor belt combines the transversely rigid base belt, corrugated sidewalls, and transverse cleats into one conveying system. Each component must be coordinated with belt width, inclination angle, material characteristics, capacity, pulley diameter, working tension, and return-side design.
Base Belt Structure
Transversely Rigid Base Belt
The base belt requires sufficient transverse stiffness to support the sidewalls and cleats while retaining longitudinal flexibility around the conveyor pulleys. Construction options may include EP fabric carcasses, transverse fabric or steel breakers, steel mesh, or steel cord reinforcement according to working tension, belt width, load, and pulley diameter.
EP fabric, steel mesh, or steel cord options
Transverse stiffness selected for belt width
Pulley diameter and bending requirements confirmed
Sidewall Structure
Corrugated Rubber Sidewalls
Corrugated sidewalls retain material along both edges of the belt. Sidewall height, base width, corrugation pitch, rubber compound, and reinforcement are selected according to the inclination angle, material size, capacity, temperature, and pulley arrangement. The selected profile must flex repeatedly through the pulley and return sections without interfering with the conveyor structure.
Custom sidewall height and base width
Rubber compound selected for operating conditions
Profile matched to pulley and return design
Cleat Configuration
Transverse Cleats
T, TS, C, TC, and TCS cleat profiles are available for different conveying angles, material characteristics, and loading conditions. Cleat height, pitch, stiffness, and reinforcement must be coordinated with the sidewall profile and effective carrying width. The base belt, sidewalls, and cleats can be assembled through controlled hot-vulcanized bonding according to the approved belt specification.
T, TS, C, TC, and TCS cleat profiles
Cleat pitch selected for material flow
Reinforcement reviewed for cleat loading
Hongkun Factory Specifications
Sidewall Belt Sizes & Profiles
- Catalog belt widths
- 300–1400 mm
- Sidewall profiles
- N / S / ES
- Cleat profiles
- T / TS / C / TC / TCS
See dimension drawings and size tables. Final dimensions and profile combinations require confirmation before production.
Recommended Applications & Industry Selection Matrix
Corrugated sidewall conveyor belts can be configured for steep-incline and vertical conveying across a wide range of bulk-material industries. Belt construction should be selected according to the conveyed material, operating conditions, and conveyor design.
| Industry / Application | Typical Conveyed Materials | Operating Challenges & Selection Focus | Recommended Belt Configuration |
|---|---|---|---|
| Cement & Lime Plants | Clinker, limestone, raw meal, gypsum, and kiln-feed materials | Elevated material temperature, abrasive wear, heavy loading, and continuous operation |
|
| Mining & Quarrying | Iron ore, coal, aggregates, crushed rock, and mineral concentrates | Lump impact, gouging, cutting, high bulk density, and continuous throughput |
|
| Steel & Metallurgy | Sinter, coke, slag, foundry sand, and metal-processing residues | Hot material contact, sharp edges, abrasive fines, and demanding operating cycles |
|
| Ports & Grain Terminals | Grain, fertilizer, pellets, feed ingredients, and bulk chemicals | High throughput, material rollback, dust, oil or chemical exposure, and product degradation |
|
| Recycling & Waste Handling | Crushed glass, RDF, compost, plastics, metal fragments, and mixed industrial waste | Puncture, cutting, tearing, oil contamination, and irregular material size |
|
| Thermal & Biomass Power Plants | Coal, bottom ash, fly-ash mixtures, wood chips, biomass, and pellets | Restricted installation space, dust, fire risk, material rollback, and continuous feeding |
|
| Chemical & Fertilizer Plants | Granular fertilizer, salts, powders, and chemical feedstocks | Chemical exposure, moisture, dust, contamination, and material spillage |
|
| Sand, Gravel & Building Materials | Sand, gravel, dry mortar, clay, crushed brick, and construction aggregates | Abrasion, heavy loading, loading-point impact, and material rollback |
|
Evaluate Hongkun as a Corrugated Sidewall Conveyor Belts Manufacturer & Supplier with AI
Let AI review the product range, made-to-order production for your working conditions, and how to request an accurate quotation.
Sidewall Conveyor Belt Test Report: EE200 Steep-Incline Belt
Measured results from a 46.5 m EE200 steep-incline sidewall conveyor belt produced by Hongkun for a customer in India and tested on 30 September 2026 to HG/T 4062-2023. All 12 test items passed, and the belt also passed the flame test and surface-resistance (antistatic) check.
- Sidewall-to-base belt adhesion
- 14.29 N/mmRequirement ≥ 8 N/mm
- Sidewall abrasion loss
- 77 mm³Requirement ≤ 90 mm³
- Flame test, total flame duration
- 31.54 sRequirement ≤ 45 s (6 specimens)
| Test item | Requirement | Measured | Result |
|---|---|---|---|
| Longitudinal full-thickness tensile strength | ≥ 750 N/mm | 800 N/mm | Pass |
| Elongation at reference load | ≤ 4% | 1.0% | Pass |
| Adhesion: top cover to fabric | ≥ 3.5 N/mm | 8.9 N/mm | Pass |
| Adhesion: bottom cover to fabric | ≥ 3.5 N/mm | 8.6 N/mm | Pass |
| Adhesion between plies | ≥ 4.5 N/mm | 9.7 N/mm | Pass |
| Cover rubber | |||
| Cover tensile strength | ≥ 18 MPa | 18.3 MPa | Pass |
| Cover elongation at break | ≥ 350% | 590% | Pass |
| Cover abrasion loss | ≤ 120 mm³ | 90 mm³ | Pass |
| Corrugated sidewall | |||
| Sidewall tensile strength | ≥ 18 MPa | 18.7 MPa | Pass |
| Sidewall elongation at break | ≥ 400% | 617% | Pass |
| Sidewall abrasion loss | ≤ 90 mm³ | 77 mm³ | Pass |
| Sidewall-to-base belt adhesion | ≥ 8 N/mm | 14.29 N/mm | Pass |
| Conclusion | Pass | ||
- Flame test on 6 specimens with covers: total flame duration 31.54 s (requirement ≤ 45 s); maximum single value 5.81 s (requirement ≤ 15 s); no re-ignition on any specimen.
- Surface resistance: 2.1 × 106 Ω (requirement ≤ 3 × 108 Ω).
This is an in-house factory test report for one production order. Customer details are withheld. Results apply to the tested belt; test items and reports for your belt can be agreed before production.
