Shot Blasting Machine Spare Parts
Rubber curtains, chamber liners, screen plates, elevator belts and tumble belts
Hongkun makes the rubber spare parts for shot blasting machines in its own factory in Qingdao, China. Each part is made to your machine model, to the dimensions of your old part, or to your drawing — for crawler (tumble blast) machines, drum shot blasting machines and other models. Metal wear parts can be sourced on request, so you get all the spare parts for your shot blasting machine from one supplier, in one shipment.
Shot blasting machine spare parts list: shot blast machine parts made in our factory
-
Factory-made

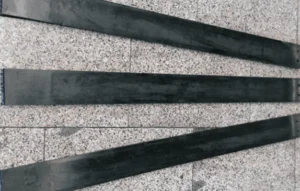

Steel-Reinforced Rubber Curtain Strips
Hang at the chamber inlet and outlet to keep steel shot inside. A steel insert keeps each strip straight and heavy.
Chamber doorsMade to length -
Factory-made
Rubber Chamber Liners
End disc liners and wall liners that protect the blast chamber of crawler (tumble blast) machines. Bolt holes follow the original layout.
Tumble blast machinesMade to sample -
Factory-made
Rubber Drum Liners
Liners for drum shot blasting machines. The raised rib helps turn the parts as the drum rotates, so every surface is blasted.
Rotary drum typeMade to size -
Factory-made
Perforated Screen Plates – Sector
Fan-shaped plates that let shot and sand fall through while holding the parts back. Hole size and pattern copied from your sample.
Made to sample -
Factory-made
Perforated Screen Plates – Square
Rectangular perforated plates for shot separation and drainage areas. Made to your size, thickness and hole layout.
Made to size -
Factory-made

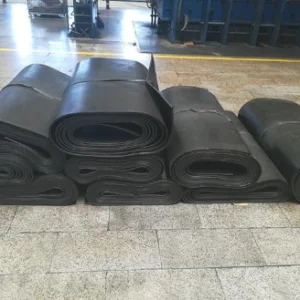

Elevator Belts
Rubber belts for the bucket elevator that lifts used shot back to the separator and hopper. Width and length to order.
Bucket elevatorsSupplied in rolls -
Factory-made
Elevator Belt Assemblies
Elevator belts supplied with the buckets already fitted, so the replacement goes straight into the machine.
Ready to install -
Factory-made

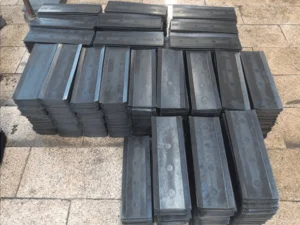

Elevator Bucket Pads
Moulded rubber pads used with the elevator buckets. Made to the size and groove of your existing pads.
Bucket elevatorsMade to sample
Need a part that is not shown here? Send a photo and the dimensions — rubber parts for most shot blasting machines can be made from a sample or drawing.
Find Parts by Machine Model
Most of our customers run crawler (tumble blast) or drum shot blasting machines. These are the rubber parts we usually supply for each type.
| Machine | Rubber parts we make | What to send us |
|---|---|---|
| Q32 SeriesCrawler / tumble blast machines |
|
Machine model, nameplate photo, old part photos |
| Sinto-TypeTumble blast machines of this design |
|
Machine model, belt size, old part photos |
| Rotary Drum TypeRotary drum shot blasting machines |
|
Drum size, liner dimensions and bolt hole layout |
| Other brands & modelsHook, through-feed and custom machines |
|
Drawing, or old part dimensions and photos |
Machine designs vary between builders. We check every order against your photos and dimensions before production.
Shot Blasting Machine Rubber Belts
The perforated rubber belt (tumble belt) that carries and turns parts in crawler shot blasting machines. Patented jointless construction with no visible joint, finished length within 1 cm of your drawing, and a high wear-resistant option.
Metal Parts Sourced on Request
We do not make metal parts ourselves. If you need them, we source them from suppliers in China and ship them together with your rubber parts, so you deal with one supplier.
What to Send for an Accurate Quote
Spare parts for shot blasting machines are made to fit one machine. The more of this we have, the faster we can quote and the closer the fit.
- Machine modelModel number and a photo of the nameplate, if you have one.
- Old part dimensionsLength, width, thickness and any curves or angles.
- PhotosFront, back and side, with a tape measure in the picture.
- Hole positionsBolt hole size, spacing and distance from the edges.
- QuantityPieces or sets for each part, and any spares you want to keep.
Other Rubber Wear Parts
We also make rubber wear parts for other industrial equipment.
-

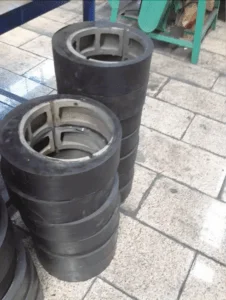

Eccentric Friction Wheels
Rubber-covered wheels for wire rod descaling machines.
-

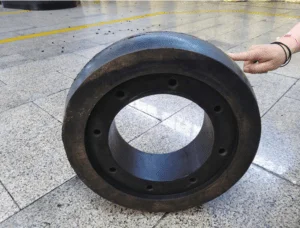

Rubber Friction Wheels
Solid rubber drive wheels made to your diameter and bolt pattern.
-
Rubber Sheets
Wear-resistant rubber sheets in rolls, cut to your size.
Shot Blasting Machine Spare Parts: Common Questions
Can you make a part by copying my old one?
Yes. Send the dimensions, the bolt hole positions and clear photos with a tape measure in the picture. For complex shapes you can also send the old part as a sample. We confirm the dimensions with you before production.
What is the lead time?
It depends on the part and the quantity. We confirm the lead time in the quotation. A shape we have not made before may need a new mould first, and we will tell you before you place the order.
Can I order rubber and metal parts together?
Yes. Rubber parts come from our factory; metal parts such as blades, impellers and control cages are sourced on request and quoted separately. Everything ships together in one consignment.
Can I buy just one type of part?
Yes. You can order a single part type, a small replacement quantity, or a full set for one machine.
Will the parts fit my machine?
We supply parts for Q32 series crawler machines, Sinto-type tumble blast machines, rotary drum shot blasting machines and other brands. Machines from different builders can differ in size and hole layout, so we work from your model, nameplate and old part dimensions rather than a fixed catalogue size. Send these with your inquiry and we will check the fit before quoting.
Which spare parts wear out fastest on a shot blasting machine?
The parts in direct contact with steel shot: blast wheel blades, liner plates, curtain strips, chamber liners and the rubber belt. How often they need replacing depends on the shot size, workpieces, running hours and maintenance. Ordering these parts together, and keeping a spare set, helps avoid unplanned downtime.
Do you supply shot blasting machine builders and repair shops?
Yes. We supply rubber belts and rubber parts for new machines and for after-sales replacement. Send your drawings, and we can quote per order or for regular batch supply.
Tick the Parts You Need
Choose your parts and machine, then send the list to us on WhatsApp. You can add photos and drawings in the chat.
