How to Get a Bucket Elevator Belt Quote

Send These Four Details for a Bucket Elevator Belt Quote

1. Keep the First Bucket Elevator Belt Inquiry Simple

Buyers often delay an inquiry because they think a complete engineering drawing is required before a supplier can respond. For an initial bucket elevator belt quotation, start with the core dimensions and the steel-cord information you already have.

For a replacement bucket elevator belt, copy the available dimensions from the old specification or measure the existing belt. If it is a new design, send the required belt dimensions and strength information. When the exact cord diameter is unknown, Hongkun can discuss the selection after reviewing the strength requirement.

2. Record the Basic Bucket Elevator Belt Dimensions

Start with three dimensions: belt length, belt width and total belt thickness. These are the first three items needed for the initial quotation.

• Length: provide the specified or measured belt length in metres or millimetres.
• Width: measure across the full belt width.
• Total thickness: measure the complete belt, including its covers.

The measurement does not need to become a complicated engineering exercise at the first-contact stage. Send the figures you have; Hongkun can ask for clarification later if a value looks incomplete or inconsistent.

3. Send the steel-cord diameter or required belt strength

For a steel-cord bucket elevator belt, provide the cord diameter when it is known. Alternatively, provide the required belt strength and ask Hongkun to review the suitable cord construction.

If the project uses a fabric-carcass belt rather than steel cord, send the existing fabric designation when available. Hongkun can clarify the fabric details separately without making the initial contact form unnecessarily long.

Bucket Elevator Belt RFQ Checklist: Copy-Paste the Short Inquiry Template

This short version is enough to start a quotation discussion.

BUCKET ELEVATOR BELT — QUICK QUOTE REQUEST

Belt Length: ___ m
Belt Width: ___ mm
Total Belt Thickness: ___ mm

Steel Cord — complete one:
- Cord Diameter: ___ mm
- Required Belt Strength: ___
- Let Hongkun Select: [Yes]

Quantity: ___
Destination Country: ___
Additional Notes: ___

4. Confirm the Bucket Elevator Belt Hole Pattern After the Initial Quote

The bucket elevator belt hole pattern is a production-confirmation item, not a barrier to the first inquiry. After the initial quotation discussion, Hongkun can confirm whether the belt should be supplied with precision-cut mounting holes based on the customer’s drawing.

When the order progresses to technical confirmation, the drawing can define:

1. Hole Diameter (d): the diameter of each bucket mounting hole.
2. Horizontal Hole Pitch / Pitch Across Belt Width (p1): the centre-to-centre distance between adjacent mounting holes for the same bucket, measured across the belt width.
3. Vertical Bucket Spacing (p2): the centre-to-centre installation pitch between successive bucket groups along the belt-running direction.
4. Edge Margin / Free Edge (e): the distance from the centre of the outermost mounting hole to the belt edge.

Also state the number of hole rows and the number of mounting holes per bucket where applicable.

The phrase pre-drilled bucket elevator belt can describe a finished belt delivered with completed holes. For the manufacturing process, CNC waterjet hole cutting or precision-cut mounting holes is clearer than calling the process punching.

5. Cover grade can also be refined later

If the required cover grade is already known, mention whether the application needs a general wear-resistant, heat-resistant, oil-resistant or other specific-use compound. If it is not known, it does not need to delay the first inquiry.

• Name the conveyed material.
• For a heat-related application, provide the actual material and operating temperatures available to the buyer.
• For oil exposure, identify the material or process creating the exposure.
• Describe any other special environment that the manufacturer should review.

Final compound selection and any numerical operating limit should be confirmed for the specific inquiry. This guide does not publish unverified temperature ranges, certifications or performance guarantees.

Detailed Bucket Elevator Belt Specification Template for Later Confirmation

The following information is useful after the first quotation discussion. Buyers do not need to complete every field before contacting Hongkun.

OPTIONAL TECHNICAL CONFIRMATION — BUCKET ELEVATOR BELT

Project: [Replacement / New Design]

Belt Dimensions:
- Length: ___ m
- Width: ___ mm
- Total Thickness: ___ mm

Carcass — complete one option:
- Fabric: Type ___ | Rated Strength ___ | Plies ___ | Top/Bottom Cover ___ / ___ mm
- Steel Cord: ST Rating ___ | Cord Diameter ___ mm | Top/Bottom Cover ___ / ___ mm
- Let Manufacturer Review: [Yes / No]

Elevator Data — complete if manufacturer review is required:
- Lift Height / Center Distance: ___ m
- Bucket Size: ___
- Loaded Bucket Weight: ___ kg
- Bucket Spacing: ___ mm
- Required Capacity: ___ TPH
- Belt Speed: ___ m/s
- Drive Pulley Diameter: ___ mm
- Return Pulley Diameter: ___ mm

Hole Pattern:
- Hole Diameter (d): ___ mm
- Horizontal Hole Pitch (p1): ___ mm
- Vertical Bucket Spacing (p2): ___ mm
- Edge Margin / Free Edge (e): ___ mm
- Number of Hole Rows: ___
- Number of Holes per Bucket: ___

Cover Grade:
- [General Wear / Heat Resistant / Oil Resistant / Other: ___]
- Actual Operating Temperature, if relevant: ___ °C

Conveyed Material: ___
Quantity: ___
Destination Country: ___
Drawing / Photos Available: [Yes / No]
Additional Notes: ___

What Happens After the Bucket Elevator Belt RFQ Is Submitted?

1. Hongkun reviews the belt length, width, thickness and supplied cord diameter or strength requirement.
2. An initial quotation discussion starts without requiring every technical field in advance.
3. Missing carcass, cover or hole-layout details are clarified step by step when the project moves forward.
4. The buyer checks the final specification and commercial quotation before ordering.

Keeping the information in one specification sheet makes quotations easier to compare and reduces the risk of ordering from an assumed machine model or incomplete hole pattern.

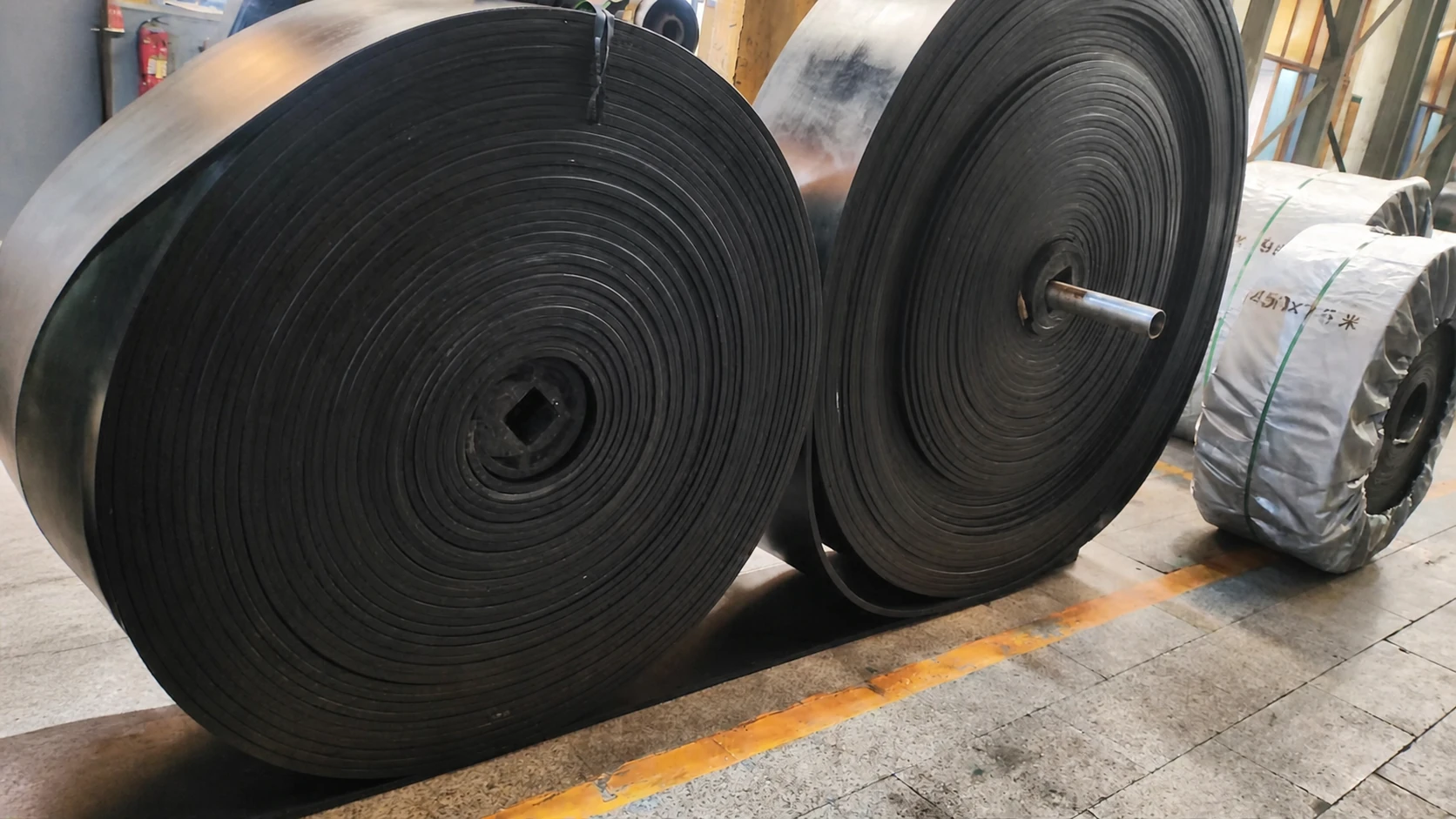

Watch bucket elevator belt manufacturing

Open the Hongkun YouTube Short to see a factory view related to bucket elevator belt production. The video opens in a new tab.

▶Watch Bucket Elevator Belt Production

Watch the bucket elevator belt factory video on YouTube →
